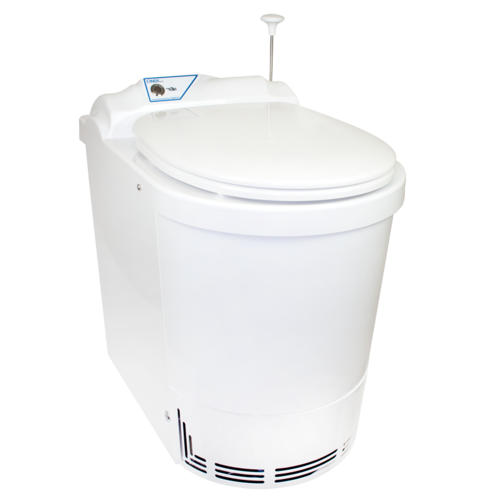

Cindi Basic
Incinerating Toilet

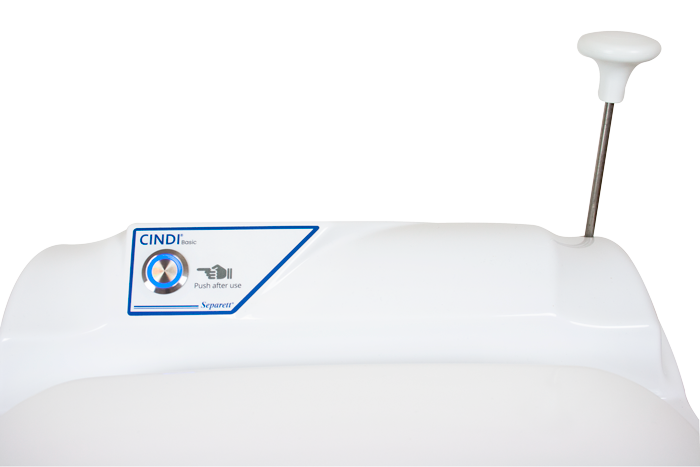

CINDI® Basic is the latest addition to our family of incinerating toilets and is a easy to use, one button to push to begin the incineration program.
CINDI® Basic has a digital display to let you know what state it’s in or if it requires any special attention via a button and a series of light signals. Additional information can be found in the manual.
CINDI® Basic is optimized for your cottage and/or Tiny house but can also be installed in your home or in a guest house. It has the capability of handling the humanure from up to 6 persons on a regular basis. The toilet is used whenever it’s needed, even if someone has just visited it. The toilet keeps track of the number of visits and adapts the incineration time to ensure that the waste product is always ash. It is therefore important to start the incineration program after each visit.
The following is included with the toilet: Long bend Ø110 mm 90°, cleaning brush, dimensional drawing, 100 bags, windcowl, chisel, O-ring and extra fuses.
Separett Child seat is available as an extra if required. Click here.
Vent kit is also required. Click here.
Installation instructions, and product sheets are available to download here.
Video:
Installation Video:
(SEP-1229-01)
Material - All the material is recyclable
Upper Part | Recyclable ABS |
Bottom Part | White Enamelled Galvanised Steel |
Interior | Stainless Steel Plating |
Seat | High Luster Polypropylene |
Ash Box | Acid Proof Plate |
Height | 535mm (seat to floor) |
Width | 395mm |
Depth | 635mm |
Ventilation pipe exhaust air | Ø 110 mm |
Ventilation pipe length required | 4 metres |
Vent inlet air | Ø 160 mm |
Package Weight (approx) | 42kg |
Voltage/Watts | 240V/1.8kW |
Electrical connection | Cable 2m with earthed plug |
Energy consumption | 0.6-2.4kW/visit |
Fuse | 10 amp |
Noise | 55dB(A) |
Maximum load bearing | 150kg |
Installation
Separett Cindi has no room temperature requirements and functions both in cold and warm spaces. It can be placed wherever needed and does not need to be secured to a wall or floor. A Separett Vent Kit is available and recommended.
Ventilation
The unit can be vented through a wall or the roof using a maximum 6 metre long pipe of 110 mm diameter and 1 x 90° or 2 x 45° bends. Air inlet should be provided by a 160 mm valve through the outer wall either near Separett Cindi or immediately below the ceiling.
Installation Instructions
3 Year Manufacturers warranty.
Provided: The product has been installed, assembled and used correctly in accordance with its specifications, properties and area of use.
Exceptions: The following parts have individual waranties from OEM:
Element: 1 Year
Ash Box: 2 years
Thermo Coupling: 2 years.
For spare parts products, a warranty period of 6 months applies.
If the product is used in business operations, the warranty commitment is valid for 1 year from the original delivery date.
The manufacturer’s liability does not include:
1. Normal wear, normal corrosion or defects in surface layers that do not affect the function of the product. 2. Damage caused by incorrect installation or incorrect handling / use.
3. Accidents, e.g. errors caused by lightning strikes, floods, other acts of nature.
4. Service / repair performed by a service partner other than the manufacturer designated.
5. Original parts not used.
6. Use of the product continued after defects were discovered.
7. The product has been used more intensively than is in accordance with the manufacturer’s recommendations.
8. The product has not been used with normal care
9. The product has not been serviced and maintained according to the manufacturer’s instructions.
10. Transport damage, eg. transport damage must be reported to the transport company.
11. Damage or other abnormal external influence
12. The manufacturer reserves the right to make a professional assessment of any warranty action.
